高级会员 | 蔡烨震:焕醒让·努维尔魔都新作 —— 一场激动人心的视觉盛宴




Lumialighting Design 优米照明设计(上海)有限公司

恒基·旭辉天地照明设计






点亮建筑大师
·努维尔(Jean Nouvel)

上海地标新作
再现80年代

摩登之都的“法式生活”

当现代与古典优雅交汇
花园绿意与丹霞之红渐次流转

恒基·旭辉天地照明设计

第一设计,为您精彩呈现!








主创设计师:蔡烨震

Lumialighting Design 优米照明设计(上海)有限公司设计总监
《第一设计》高级会员



THE ROOF 恒基·旭辉天地



恒基·旭辉天地位于建国东路马当路交汇处,与中海环宇荟对角相望。Jean Nouvel 先生在详细分析上海新天地历史与文脉后,创造出这片令人激动的建筑;而优米照明设计也非常荣幸能与Jean Nouvel先生合作,与AJN团队一起共同完成了这个鼓舞人心的文化地标的灯光设计。



THE ROOF is located at the intersection of Jianguo East Road and Madang Road, opposite to UNI ELITE. Mr. Jean Nouvel analyzed the history and context of New World of Shanghai before created this exciting building. LUMIA is honored to cooperate with Mr. Jean Nouvel and AJN team to complete the lighting design of this inspiring cultural landmark.



项目信息:

项目名称:恒基·旭辉新天地
项目地点:上海·新天地

建筑面积:地上面积25782㎡,地下面积18700㎡

设计时间:01/2018~11/2020

灯光设计:Lumialighting Design 优米照明设计(上海)有限公司

公司电话:021-66050862

联系邮箱:info@lumialighting.com

设计总监:蔡烨震、庞磊

设计团队:何佳豪,李畅,陶天铸,张小含,张俊,于果,李梦雅,章敏,侯相华

项目业主:旭辉地产

建筑设计:AJN:Ateliers Jean Nouvel(让·努维尔建筑设计事务所)

室内设计:AJN:Ateliers Jean Nouvel(让·努维尔建筑设计事务所)

景观设计:ASPECT Studios澳派景观设计工作室

照明施工:上海新炬机电设备有限公司

照明产品: 上海芯龙光电科技有限公司、罗珂尼照明系统(上海)有限公司

特别感谢RDI提供灯光编程支持







   打造魔都时尚之夜

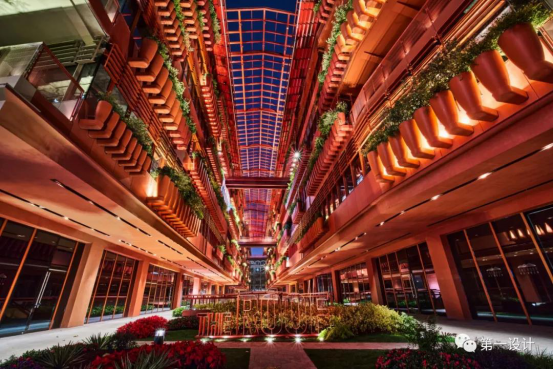

本次项目灯光设计以“舞台”为设计主题,进入内街的入口如进入剧场的大门,而一旦置身于内街,身处其中的人们就宛如进入一个梦幻剧场,行走其中的人们就成为了一个个在舞台上表演的“演员”;光从上方洒下,穿梭其中的人们互为“演员”与“观众”,体验一场激动人心的空间之旅。



The inspiration of lighting design comes from"stage". The entrance to the inner street is like the gate of the theater. Once in the inner street, the people feel like entering a theater and they become "actors" preforming on the “stage”. With the light, people shuttle back and forth in the innerstreet playing as “actor” and “audience” and experience an exciting space journey.





恒基·旭辉天地


   一颗跳动的绿肺



光影之舞 —— 优雅的舞者,外街采用低调的间接光方式,洒向花钵背板;内街则在低调的基础上增加了张扬的光照效果,形成内外性格分明的整体效果:外街-内敛沉稳;内街-热情奔放。



1:植物随风摇曳,透过层层叶片的灯光,忽明忽暗,光影随之舞动;

2:通过控制技术手段(灯光随音乐的节奏变化而起舞)输入不同的乐章,出现不同内街舞台效果。


恒基·旭辉天地



灯具采用DMX512(音频信号→电频信号→变频器→控制灯光与音乐),整体灯光概念由优米提供完成,在此感谢RDI提供编程支持。



A Throbbing Green Lung: A Dance of Lightand Shadow-----Elegant Dancer.

Indirect lights are placed in the outer street to illuminate the back of the flower pot. For creating a distinct effect between inside and outside, the lights in the inner street are more dynamic on the basis of low-key.

Outer streets ----Restrained and Steady

Inner streets ----Passionate and Ebullient

1: Plants sway in the wind. Through the light of layers of blades, it dances in bright and dark.

2: Input different audio by controlling technical methods (the lighting changes with the rhythm of the music), there will be different interior street stage effects.

The lighting control system is DMX512(audio signal → electric frequency signal → frequency converter → control lightand music)

P.S. The lighting concept is from LUMIA and thanks RDI for programming support.


恒基·旭辉天地


由于地块周围有住宅及学校,建筑外立面的灯光采用弱化立面的处理手法,仅在建筑挑檐及入口处的“花钵”上进行了暗藏投射灯,与环境实现了视觉融合,同时也突出了内街入口,在功能上实现了导流的作用



There are residence and schools around THE ROOF, so the lighting method of weakening facade is used on the architecture. Only the hidden spot lights are placed on the "flower pot" at the eaves of the building and the entrance to achieve visual integration with the environment. At the same time, it also highlights the entrance of the inner street and realizes the function of diversion


恒基·旭辉天地

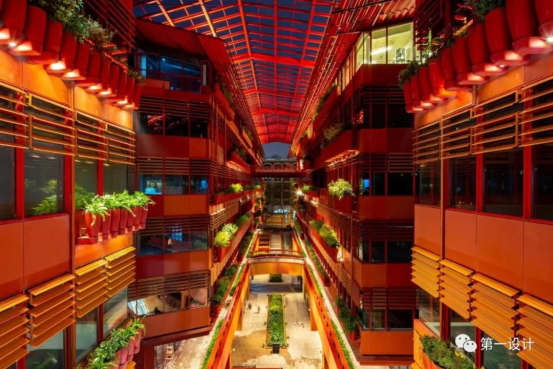

主体立面巧妙地将建筑层次和标志性的景观植物花钵组合进行了融合,这些或独立或成团形式的花钵是上海传统里弄街边盆栽的缩影。小型的投光灯暗藏在花钵之后,光线在花钵与背墙之间来回反射,花钵的弧度以及花钵内的植物都被染上淡淡光晕,既迷人又与众不同。



The facade is defined by integrated architectural layers and signature composed pots and planting collections. The pots embrace reflections of the individual and grouped pots found traditionally in Shanghai local backstreets. The pots are arranged in 5 different sizes,over multiple layers, creating the home for a range of plant species that have been carefully selected to achieve the overall project vision and provideseasonal drifts, changing in color and visual delight. The small spotlights are hidden behind the flower pot so the light reflects back and forth between the flower pot and the wall. The curvature of the flower pot and the plants are all stained with a glow, charming and unique.


恒基·旭辉天地

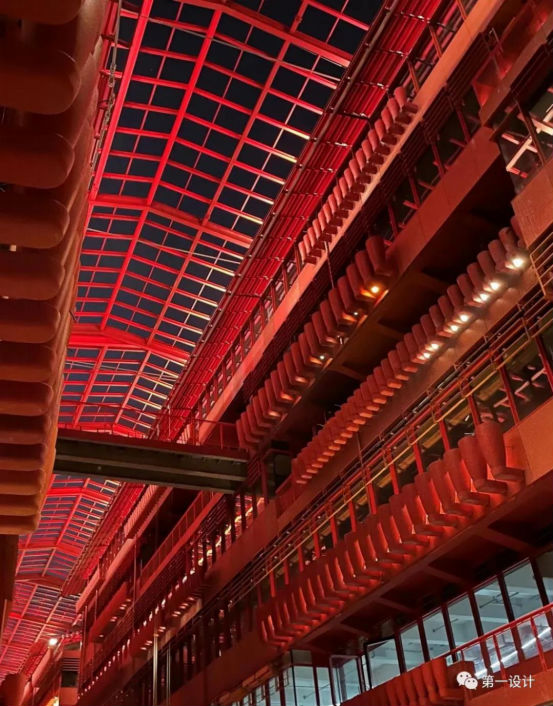

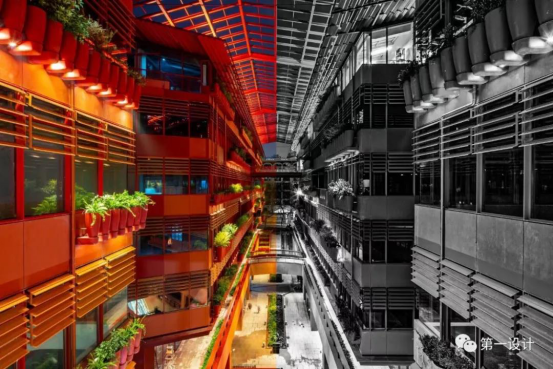

内街的丹霞红具有很强的视觉张力,任何进入这个空间的人都会为之震撼,我们在设计初期就定下高显色指数的标准(Ra≥90),同时对R9(针对红色)提出高要求。



Anyone who enters this space will be shocked by the color, which is red and it has a strong visual tension. We have set a high standard color rendering index (Ra≥90) at the early stage of design andput forward high requirements for R9 (for red).



恒基·旭辉天地

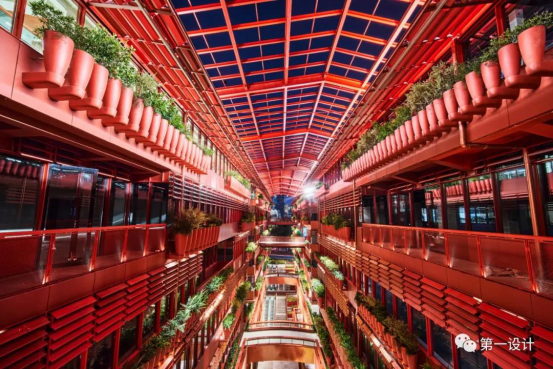

灯具本身的颜色也与墙体颜色一致,在白天灯具与周围的环境完全融合。而到了夜间,灯光从花钵后亮起,随着音乐节奏“起舞”,仿佛有了生命;藏于花钵与花钵之间的下照灯照亮地下商业的整个空间,同时也提供了如同“舞台”灯光的璀璨感觉,人们在内街穿梭,成为整个空间”舞台“的一部分,让热情的生活在此展开。


The color of the lights is consistent with the color of the wall so it is completely integrated with the surrounding environment during the day. At night, when the lights are on they seem to have life, dancing to the rhythm of the music. The downlight hidden in the flowerpots illuminates the entire underground commercial space. At the same time it provides a stunning “stage” lights. People walk into the inner streets and starta passionate life here.


恒基·旭辉天地



夜幕降临,光赋予了建筑更多的可能性,她让空间更迷人、更奔放、更妖娆、也更具吸引力。建筑、灯光、植物以及穿梭其中的人们,一起创造出这具有无限可能的空间。



As night falls, light gives more possibilities to the architecture. It makes the space more charming, more enchanting and more attractive. Buildings, lights, plants, and people all create this space with infinite possibilities。

 Lumialighting Design

优米照明设计(上海)有限公司





(本项目部分产品供应自:SHYLON 芯龙光电)



SHYLON 产品解决方案





上海芯龙光电科技有限公司此次为恒基·旭辉天地项目提供洗墙灯 SL1301A-36 ,地埋灯 SL21003A-1,投光灯SL1140FL-3 等多款产品应用。

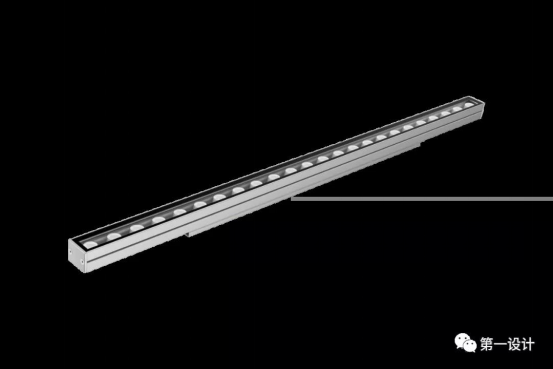

 SL1301A-36 洗墙灯




01

产品参数:

SL1301A-36 系列洗墙灯支持 DMX512 数据调光协议 ,加载 AWB 模块,提供 3000K 暖白色温,Ra>90,色容差<3。产品长度 1000 mm,功率24W,DC24V 供电。


02

应用场景:

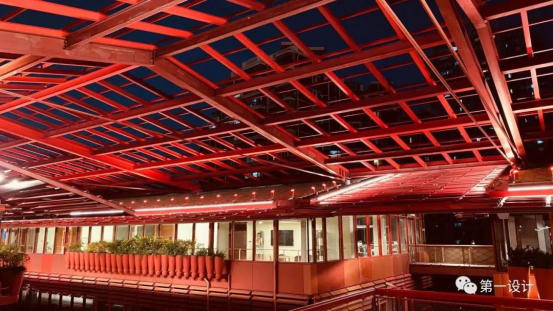

 恒基·旭辉天地项目外顶部采用 SL1301A-36 系列洗墙灯灯勾勒出建筑顶部轮廓。

 建筑内顶部格栅天花采用 SL1301A-36 系列洗墙灯实现照明效果

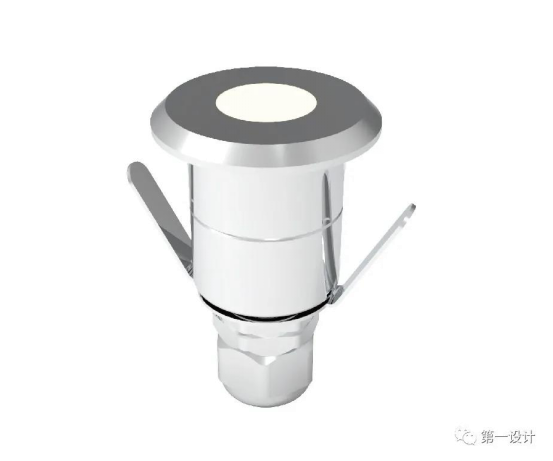

SL21003A-1 地埋灯




01

产品参数:

SL21003A-1 系列地埋灯提供 3000K 暖白色温,Ra>90,色容差<3。产品直径 30mm,功率 0.5W,DC24V 供电。



02

应用场景:







 建筑内顶天桥采用 SL21003A-1 系列地埋灯保障功能照明

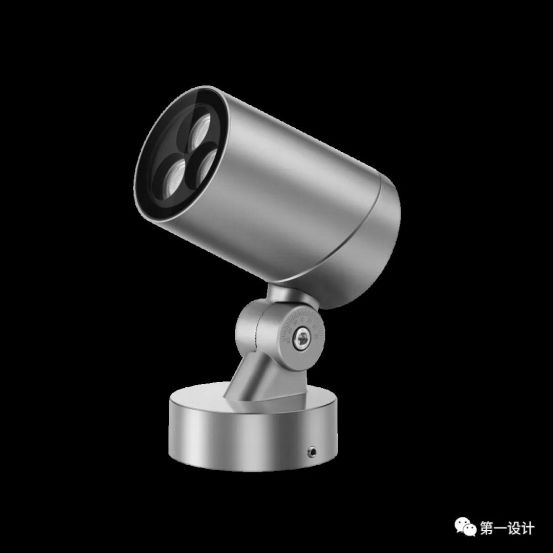

SL1140FL-3 投光灯




01

产品参数:

SL1140FL-3 系列投光灯支持 DMX512 数据调光协议 ,加载 AWB 模块,提供 3000K 暖白色温,Ra>90,色容差<3。产品直径 108 mm,功率27W,DC24V 供电。



02

应用场景:



 建筑内顶下沉屋檐采用 SL1140FL-3 系列投光灯向上打亮
